[Kotlin을 활용한 안드로이드 프로그래밍] 실습 10-2 명화 선호도 투표 앱 만들기



실습 10-2에서 에러나는 부분이 있어서 코드를 수정해서 올렸다.

일단 프로젝트 위치 사진이다.

프로젝트 구성도

MainActivity.kt

package com.example.project10_2

import android.content.Intent
import android.media.Image
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.widget.Button
import android.widget.ImageView
import android.widget.Toast

class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        title = "영화 선호도 투표"
        var voteCount = IntArray(9)
        for(i in 0..8)
            voteCount[i] = 0
        var image = arrayOfNulls<ImageView>(9)
        var imageId = arrayOf(R.id.iv1, R.id.iv2, R.id.iv3,
            R.id.iv4, R.id.iv5, R.id.iv6,
            R.id.iv7, R.id.iv8, R.id.iv9)

        var imgName = arrayOf("독서하는 소녀", "꽃장식 모자 소녀",
            "부채를 든 소녀", "이레느깡 단 베르망", "잠자는 소녀", "테라스의 두 자매", "피아노 레슨",
            "피아노 앞의 소녀들", "해변에서")

        for(i in imageId.indices){
            image[i] = findViewById<ImageView>(imageId[i])
            image[i]!!.setOnClickListener {
                voteCount[i]++
                Toast.makeText(applicationContext, imgName[i] + ": 총 " + voteCount[i] + " 표",Toast.LENGTH_SHORT).show()
            }

        }
        var btnFinish = findViewById<Button>(R.id.btnResult)
        btnFinish.setOnClickListener {
            var intent = Intent(applicationContext, ResultActivity::class.java)
            intent.putExtra("VoteCount", voteCount)
            intent.putExtra("ImageName", imgName)
            startActivity(intent)
        }
    }
}

ResultActivity.kt

package com.example.project10_2

import android.os.Bundle
import android.widget.Button
import android.widget.ImageView
import android.widget.RatingBar
import android.widget.TextView
import androidx.appcompat.app.AppCompatActivity

class ResultActivity : AppCompatActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.result)
        title = "투표 결과"

        val intent = intent
        val voteResult = intent.getIntArrayExtra("VoteCount")!!
        val imageName = intent.getStringArrayExtra("ImageName")!!

        val imageFileId = arrayOf(
            R.drawable.pic1, R.drawable.pic2, R.drawable.pic3,
            R.drawable.pic4, R.drawable.pic5, R.drawable.pic6,
            R.drawable.pic7, R.drawable.pic8, R.drawable.pic9
        )

        val tvTop = findViewById<TextView>(R.id.tvTop)
        val ivTop = findViewById<ImageView>(R.id.ivTop)
        var maxEntry = 0
        for (i in 1 until voteResult.size) {
            if (voteResult[maxEntry] < voteResult[i]) {
                maxEntry = i
            }
        }
        tvTop.text = imageName[maxEntry]
        ivTop.setImageResource(imageFileId[maxEntry])

        val tv = arrayOfNulls<TextView>(imageName.size)
        val rbar = arrayOfNulls<RatingBar>(imageName.size)

        val tvID = arrayOf(
            R.id.tv1, R.id.tv2, R.id.tv3, R.id.tv4, R.id.tv5,
            R.id.tv6, R.id.tv7, R.id.tv8, R.id.tv9
        )
        val rbarID = arrayOf(
            R.id.rbar1, R.id.rbar2, R.id.rbar3, R.id.rbar4,
            R.id.rbar5, R.id.rbar6, R.id.rbar7, R.id.rbar8, R.id.rbar9
        )

        for (i in 0 until voteResult.size) {
            tv[i] = findViewById(tvID[i])
            rbar[i] = findViewById(rbarID[i])
        }

        for (i in 0 until voteResult.size) {
            tv[i]?.text = imageName[i]
            rbar[i]?.rating = voteResult[i].toFloat()
        }

        val btnReturn = findViewById<Button>(R.id.btnReturn)
        btnReturn.setOnClickListener {
            finish()
        }
    }
}

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical"
    tools:context=".MainActivity">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="3"
       >

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv1"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic4" />

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv2"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic3" />

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv3"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic3" />


    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="3">

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv4"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic4" />

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv5"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic5" />

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv6"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic6" />


    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="3">

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv7"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic7" />

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv8"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic8" />

        <ImageView
            android:layout_width="match_parent"
            android:id="@+id/iv9"
            android:layout_height="wrap_content"
            android:layout_margin="5dp"
            android:layout_weight="1"
            android:src="@drawable/pic9" />


    </LinearLayout>

    <Button
        android:id="@+id/btnResult"
        android:layout_width="match_parent"
        android:layout_height="50dp"
        android:text="투표 종료" />

</LinearLayout>

result.xml

<TableLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:gravity="center_vertical"
    android:stretchColumns="0">

    <TableRow>

        <TextView
            android:id="@+id/tvTop"
            android:layout_gravity="center"
            android:layout_span="2"
            android:text="## 우승 그림 : "
            android:textSize="15dp" />
    </TableRow>

    <TableRow>

        <ImageView
            android:id="@+id/ivTop"
            android:layout_width="150dp"
            android:layout_height="150dp"
            android:layout_margin="10dp"
            android:layout_span="2"
            android:scaleType="fitCenter"
            android:src="@drawable/pic1" />
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv1"
            android:layout_gravity="center_vertical"
            android:text="그림1"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar1"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv2"
            android:layout_gravity="center_vertical"
            android:text="그림2"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar2"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv3"
            android:layout_gravity="center_vertical"
            android:text="그림3"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar3"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv4"
            android:layout_gravity="center_vertical"
            android:text="그림4"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar4"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv5"
            android:layout_gravity="center_vertical"
            android:text="그림5"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar5"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv6"
            android:layout_gravity="center_vertical"
            android:text="그림6"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar6"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv7"
            android:layout_gravity="center_vertical"
            android:text="그림7"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar7"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv8"
            android:layout_gravity="center_vertical"
            android:text="그림8"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar8"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <TextView
            android:id="@+id/tv9"
            android:layout_gravity="center_vertical"
            android:text="그림9"
            android:textSize="15dp" />

        <RatingBar
            android:id="@+id/rbar9"
            style="?android:attr/ratingBarStyleSmall"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_gravity="right"></RatingBar>
    </TableRow>

    <TableRow>

        <Button
            android:id="@+id/btnReturn"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_span="2"
            android:text="돌아가기" />
    </TableRow>
</TableLayout>

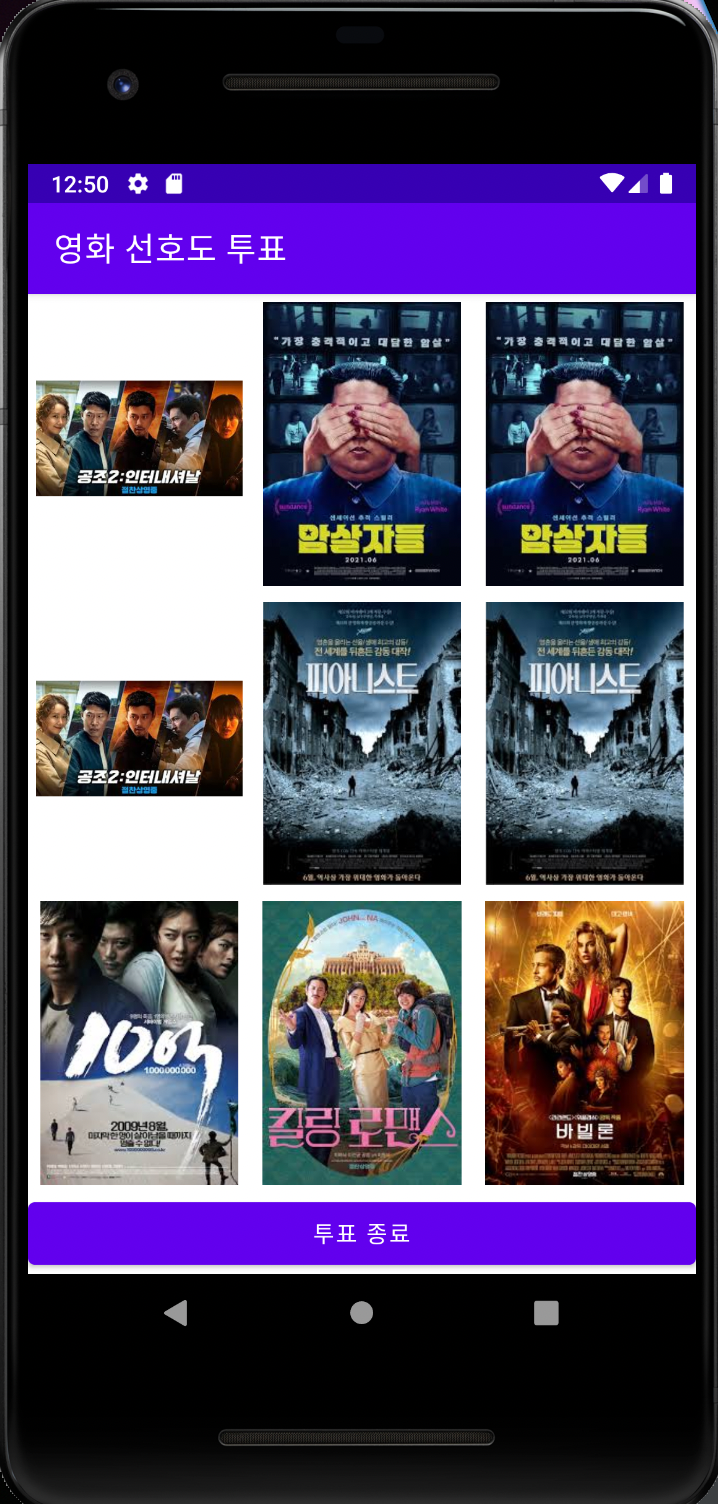

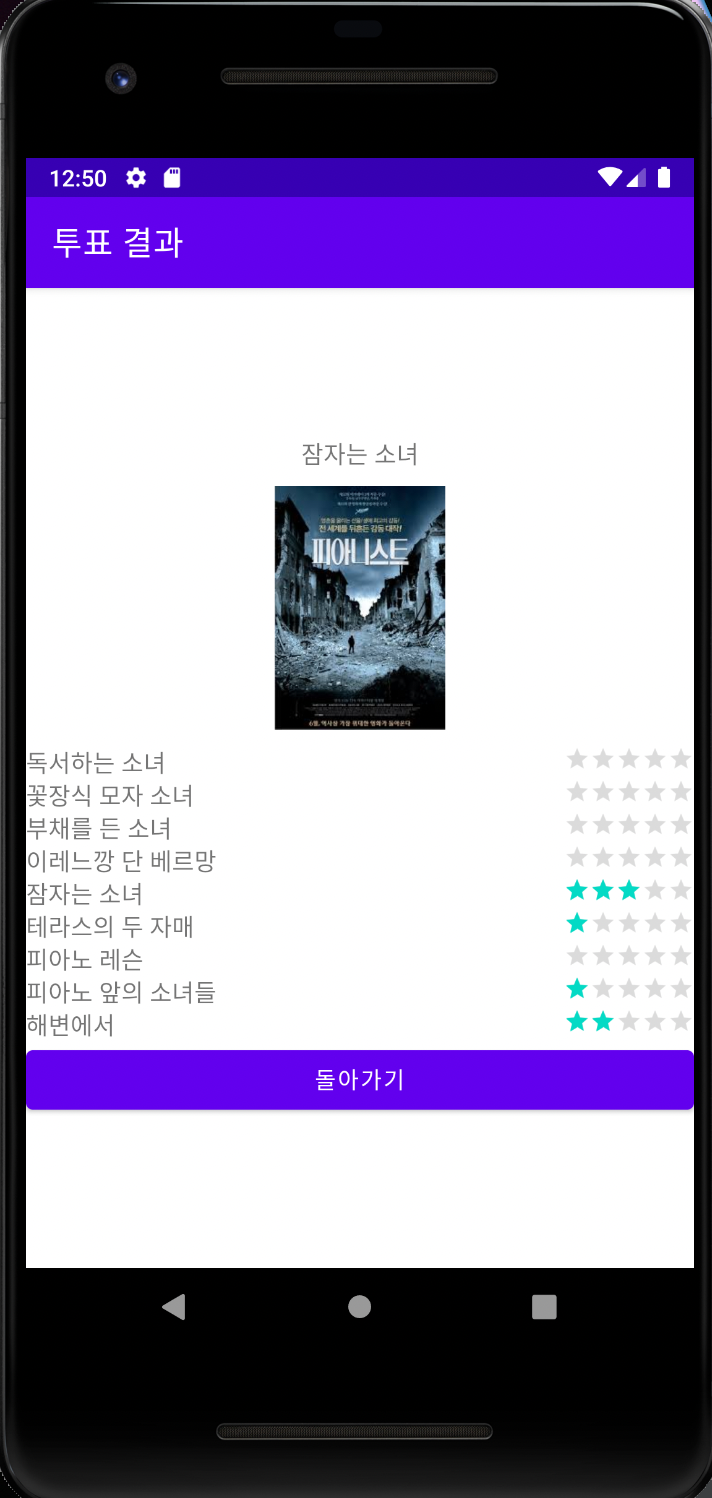

실행 화면
